Capacity
Each battery: 6144Wh, 102.4V⎓60A
60kWh Combo: 6144Wh*10, total 61440Wh
90kWh Combo: 6144Wh*15, total 92160Wh
AC Continuous Output
7200W
AC Surge Output
10.8kW
Scalability
21.6kW
Battery Chemistry
LFP
IP Rating
IP54
Battery Cycle Life
80% capacity after 3,500 cycles
UPS
Backup UPS <20 ms; Online UPS 0 ms
AC Output (Each inverter)
Discharging: Pure sine, 7200W total, 120V/240V~ 60Hz
Bypass: 100-120V~30A total, 50Hz/60Hz
DC Output (Each inverter)
12.6V⎓30A, 378W Max
AC Output Socket (Each inverter)
2 x 120V, 20A Max per port(Backup UPS)
1 x 120V/240V, 30A Max(Backup UPS)
2 x 120V, 20A Max per port(Online UPS)
1 x 120V, 30A Max(Online UPS)
USB-A (Each inverter)
2 x 5V⎓2.4A, 12W Max per port, total 24W
USB-C (Each inverter)
2 x 5/9/12/15/20V⎓5A, 100W Max per port, total 200W
AC Input (Each inverter)
Charging: 100-120V~15A; 200-240V~12.5A, 50/60Hz
Bypass: 100-120V~15A, 50/60Hz (duration < 3hrs when the cuirrent exceeds 12A)
Solar Charging Input (Each inverter)
Total 5600W, 2 ports
High-PV Input: 80-450V/15A, 4000W Max
Low-PV Input: 30-150V/15A, 1600W Max
Inverter Dimension
690 x 481 x 214 mm (27.2 x 18.9 x 8.4 in.)
Inverter Net Weight
31.7 kg (70 lb)

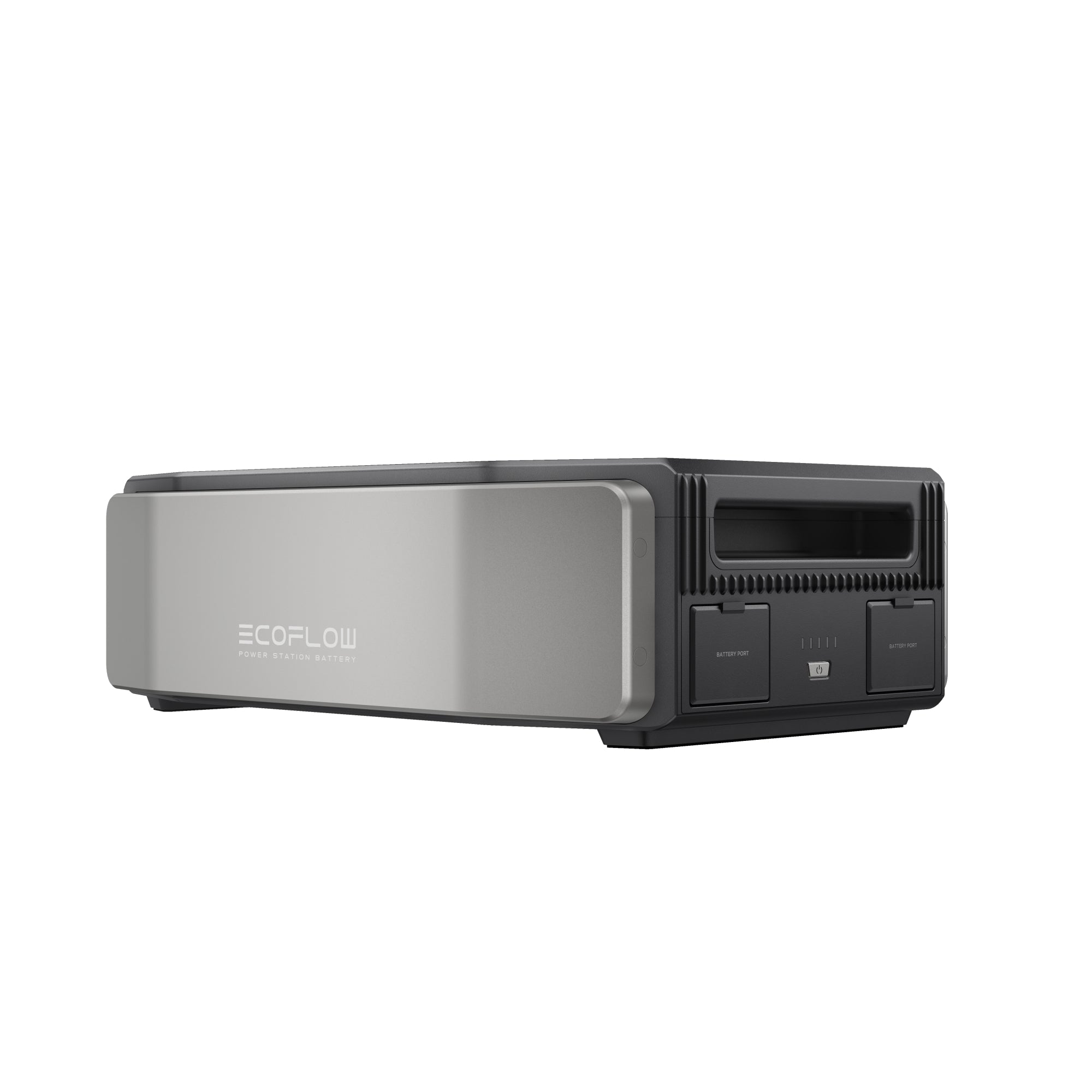

Battery Dimension
660 × 455 × 204 mm (26 × 18 × 8 in.)
Battery Net Weight
50.7 kg (111.8 lb)
Warranty
5-year warranty
Connection
Bluetooth & Wi-Fi & 4G
Discharging temp
-20°C to 45°C | -4°F to 113°F
Charging temp
-20°C to 45°C | -4°F to 113°F
Storage temp
-20°C to 45°C | -4°F to 113°F

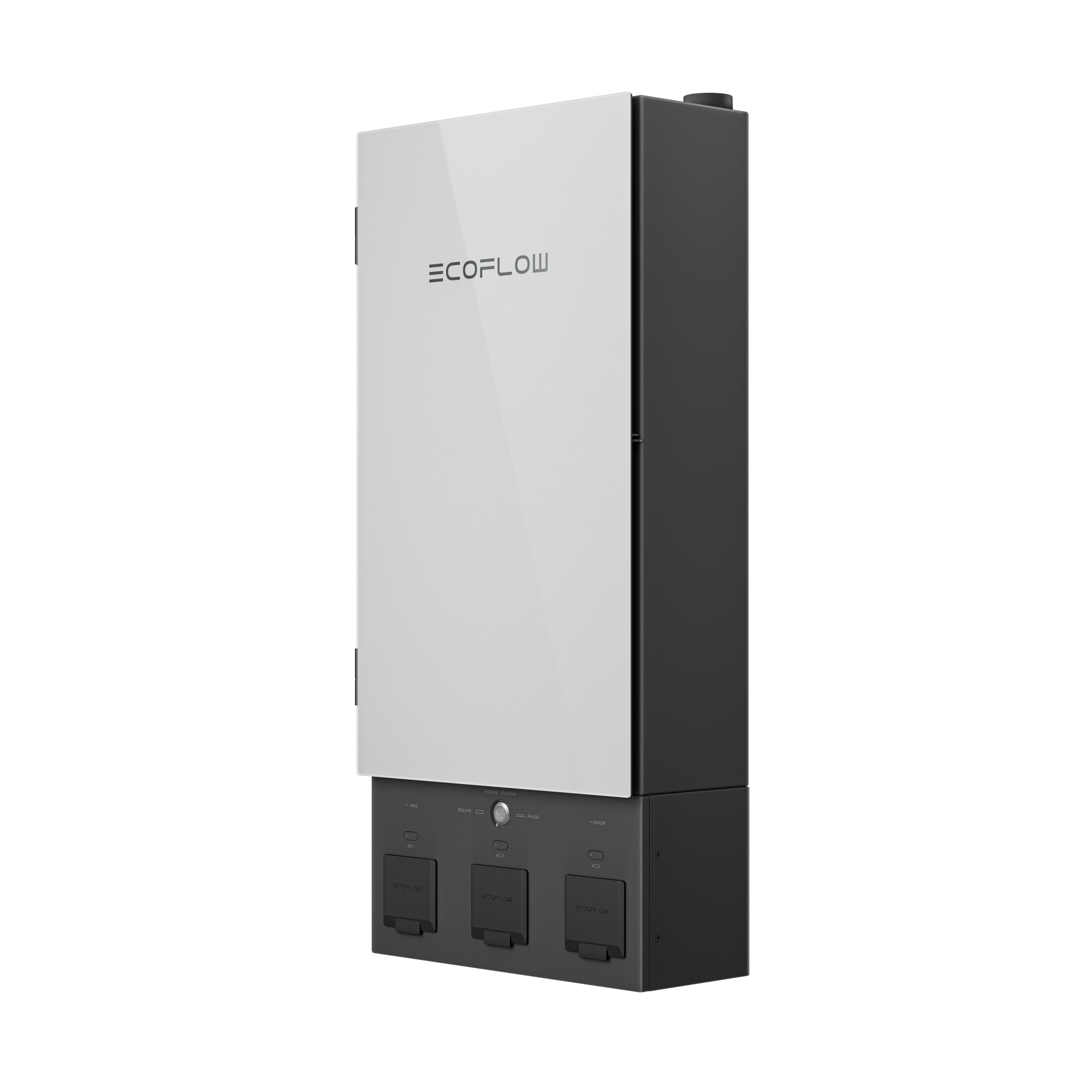

Specs - EcoFlow Smart Home Panel 2
Weight
52.9lb(24kg)
Dimension
32.4 x 14.9 x 6.7 in. (823.7 x 379 x 170 mm)
AC voltage (nominal)
120V/240V
Feed-in type
Split phase
Maximum current rating
100A panel / 90A storage
Busbar rating
120A
Maximum input short-circuit current
10kA
Operating humidity
Up to 100% RH, condensingMax
Number of load branches
12
Communication
Ethernet, Wi-Fi, Bluetooth

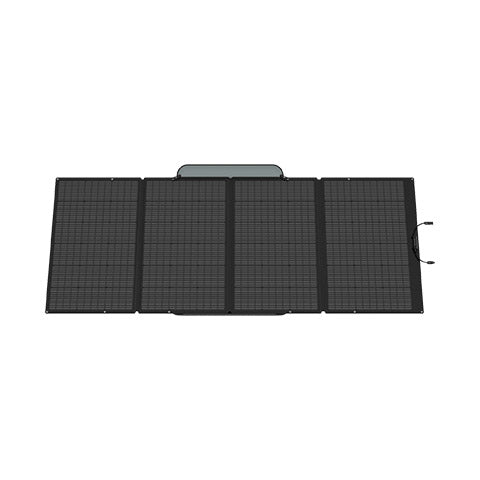

Specs - EcoFlow 400W Solar Panel
Net Weight (lbs)
35.3lbs
Net Weight (kg)
16.0kg
Net Weight (lbs) With Kickstand Case
41.9lbs
Net Weight (kg) With Kickstand Case
19.0kg
Dimensions (inch)
42.0 x 94.1 x 1.0 inches
Dimensions (cm)
106.8 x 239.0 x 2.4 cm
Rated Power
400w
Cell Type
Monocrystaline silicon
Efficiency
22.6%
Connector Type
Solar Connector
Open Circuit Voltage
48V (Vmp 41V)
Short Circuit Current
11A (Imp 9.8A)
Warranty
12 months
Operating & Storage Temperature
−4°F to 185°F
